Auto Wire Stripper & Ratchet Crimper Set

Part No.
P400147
Barcode
9312753122979

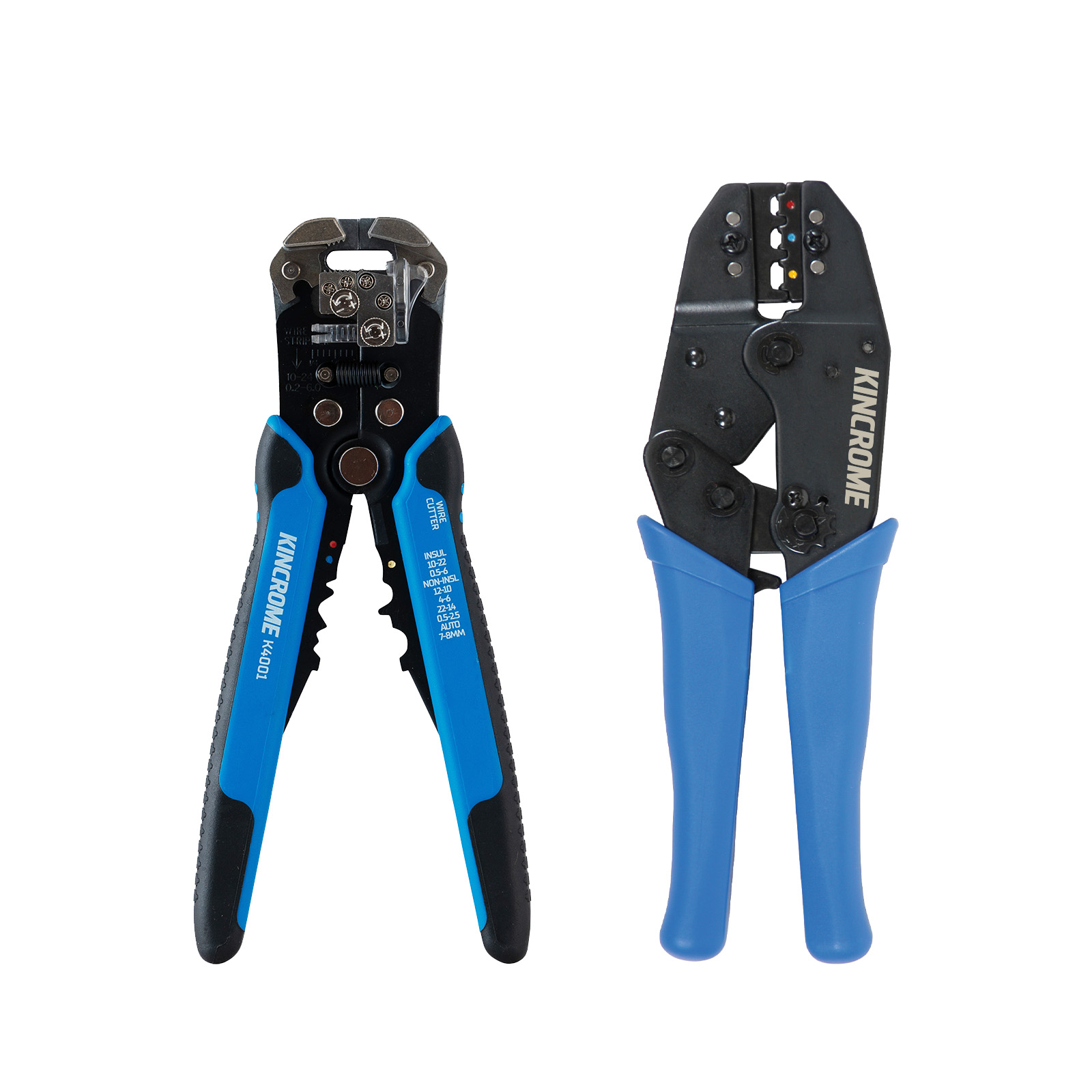

The Kincrome Wire Stripping & Crimping Set (2 Piece) combines two essential tools for fast, precise wire preparation and secure terminal connections. The Automatic Wire Stripper (200mm) automatically strips wire to a preset length and cuts or crimps insulated, non-insulated, and ignition terminals across 24–10 AWG (0.25–6.0 mm²) for efficient, repeatable results. Paired with the Ratchet Crimping Plier (210mm / 9"), which features a compound action mechanism and ratcheting system for consistent crimps on insulated terminals 10–22 AWG, this set delivers reliable performance and control, making it ideal for automotive technicians, electricians, and serious diyers.

Tool Sale Catalogue RRP: $69.95*

* As advertised in the Tool Sale Catalogue available at participating stores for the period of the promotion. See catalogue for more details.
​
Specifications
Brand KINCROME
Crimping Insulated Terminals Size 1.5mm (Red), 2.5mm (Blue), 4mm (Black), 6mm (Yellow)
Crimping Non Insulated Terminals Size 1.5mm, 2.5mm, 4 - 6mm
Finish Black Oxide
Handle Type Soft Grip
Product Length 300mm
Warranty Lifetime Guarantee
Wire Cutter Yes
Material Carbon Steel
Length (mm) 300
Width (mm) 210
Height (mm) 30
Weight (kg) 0.9
Features
17047 - Ratcheting Crimping Plier - 210mm
Crimps insulated terminals on 10-22 AWG stranded copper wire
Compound action increases crimping power
Built-in ratchet ensures uniform crimps
Unique cavity design for consistent results
Suitable for crimping insulated terminals as follows: Red 0.5 - 1.0mm² (22-18 AWG) Blue 1.5 - 2.5mm² (16-14 AWG) Yellow 4.0 - 6.0mm² (12-10 AWG)

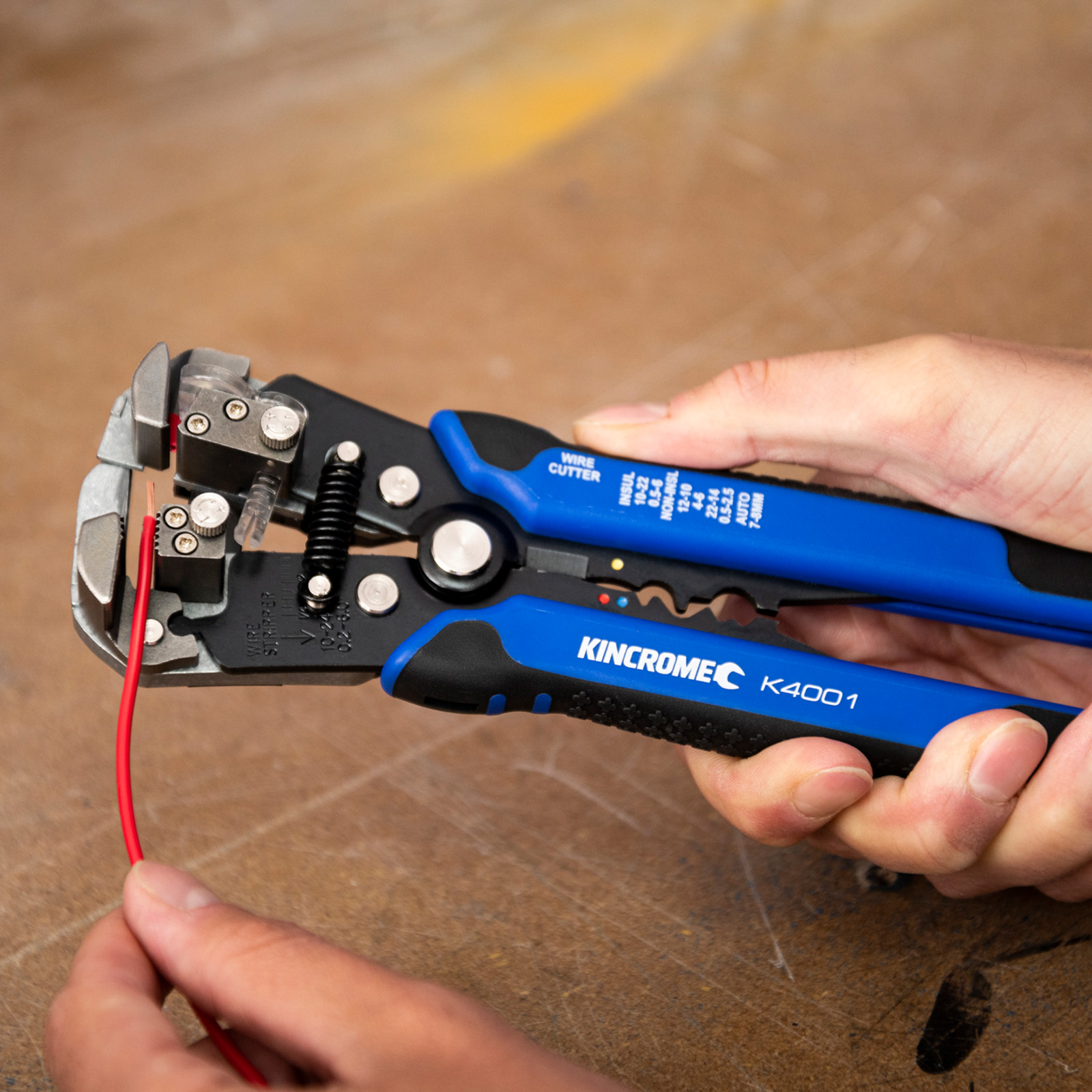

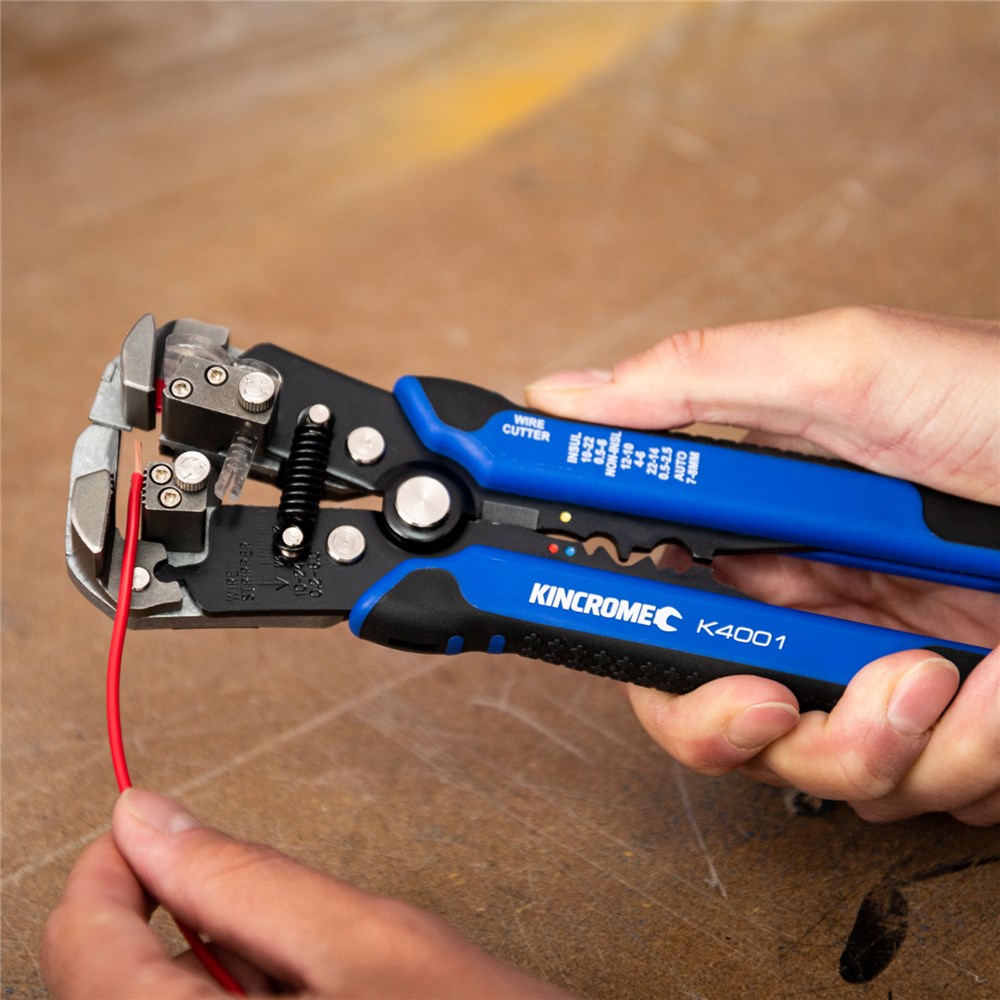

K4001 - Automatic Wire Stripper with Crimper - 200mm
Automatically strips wire to predetermined length
ABS adjustable stop & brass plated adjustable knobs
Strip & Cut Cable/Wire: 24-10 AWG (0.25-6.0 mm²)
Crimping insulated terminals size: 1.5mm (red) 2.5mm (blue) 4.0mm (black) 6.0mm (yellow)
