Torque Wrenches

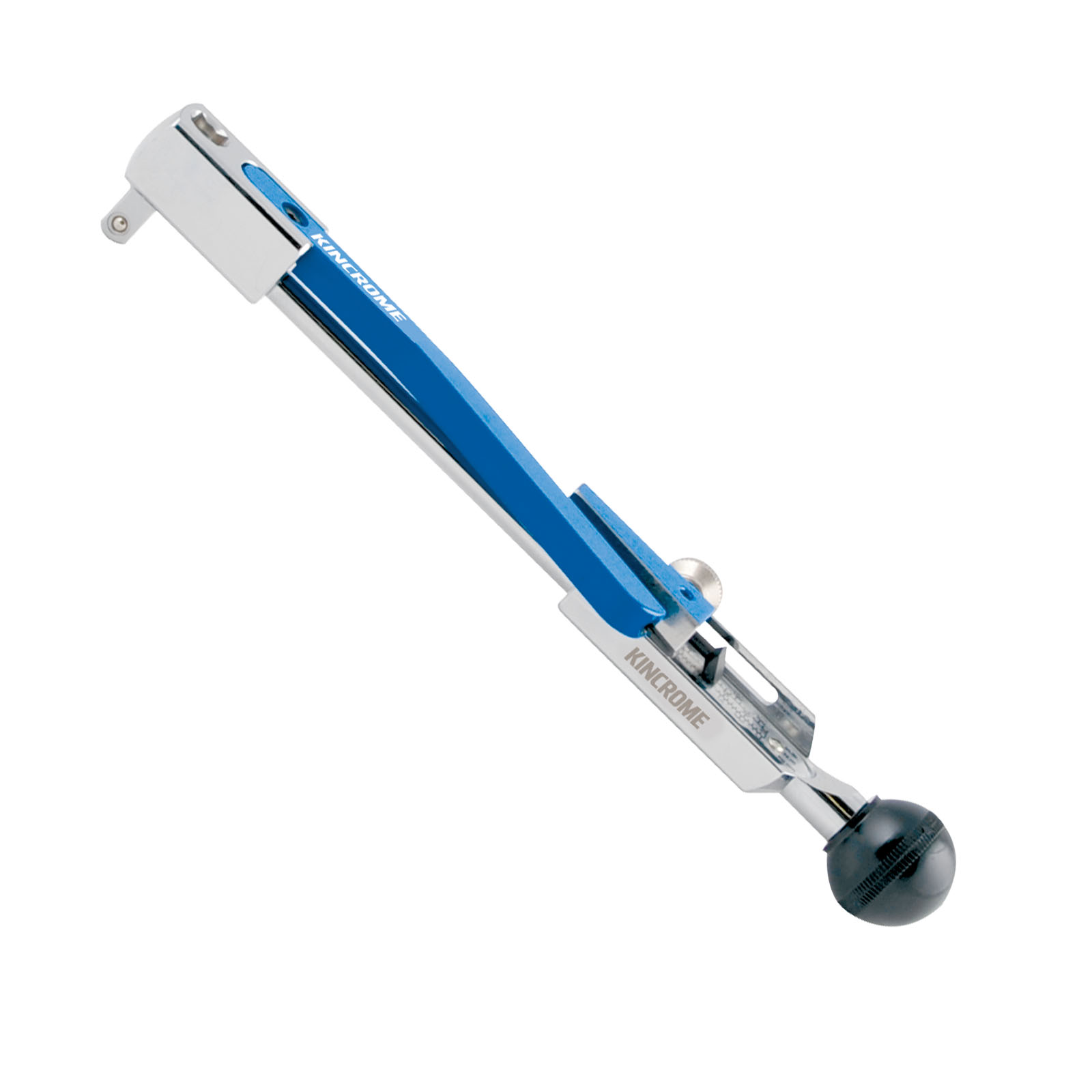

Torque Wrench Deflecting Beam 1/4" Drive

Part No.

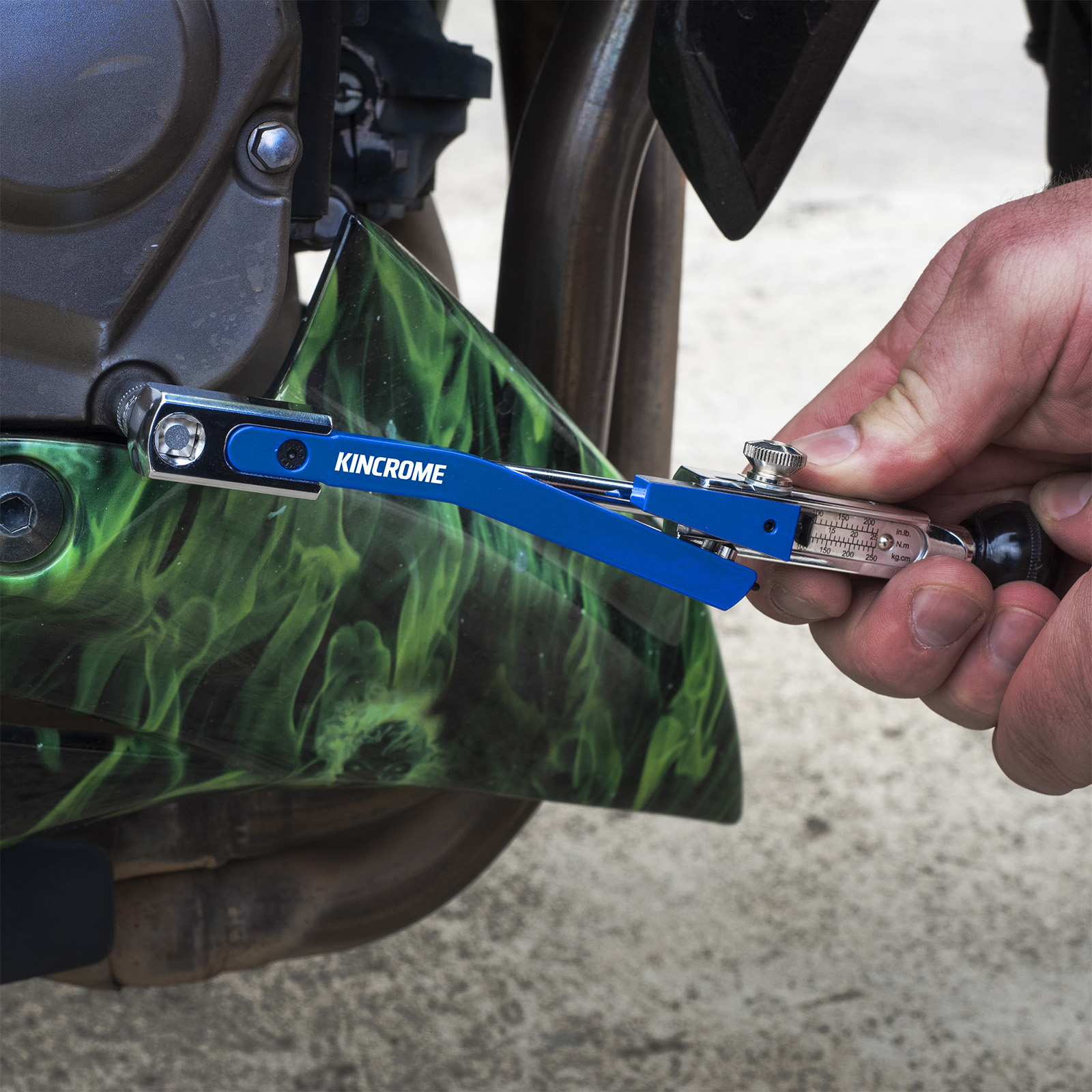

The 1/4" Deflect beam torque wrench's compact design is ideal where a very low torque settings are required such as fasteners found on Motorbikes, bikes, light engines, and much more. The 1/4" Torque wrench comes factory calibrated and includes a calibration certificate confirming its accuracy and is housed in a sturdy blow mould case to ensure years of accurate service.

Tool Sale Catalogue RRP: $125.00*

* As advertised in the Tool Sale Catalogue available at participating stores for the period of the promotion. See catalogue for more details.
Accuracy +/ - 4% of setting
Drive 1/4"
Product Length 210mm
Torque Range 5-25Nm (44.3-221.3 in/lbs)
Warranty Limited Lifetime
Material Steel
Length (mm) 210
Width (mm) 65
Height (mm) 315
Weight (kg) 0.26
Deflecting Beam mechanism
No spring
Dual Signal
Audible Click and Visual
sliding Scale
Protective Blow Mould Case
Measures torque in a single Direction only, Works only on Standard Right hand thread Applications
